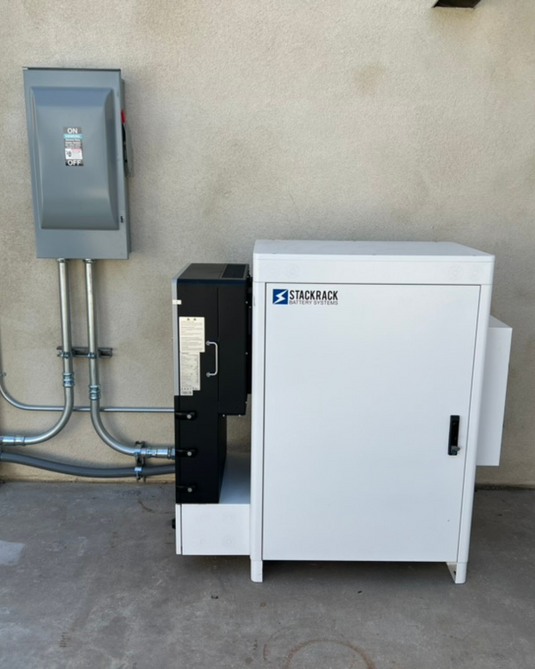

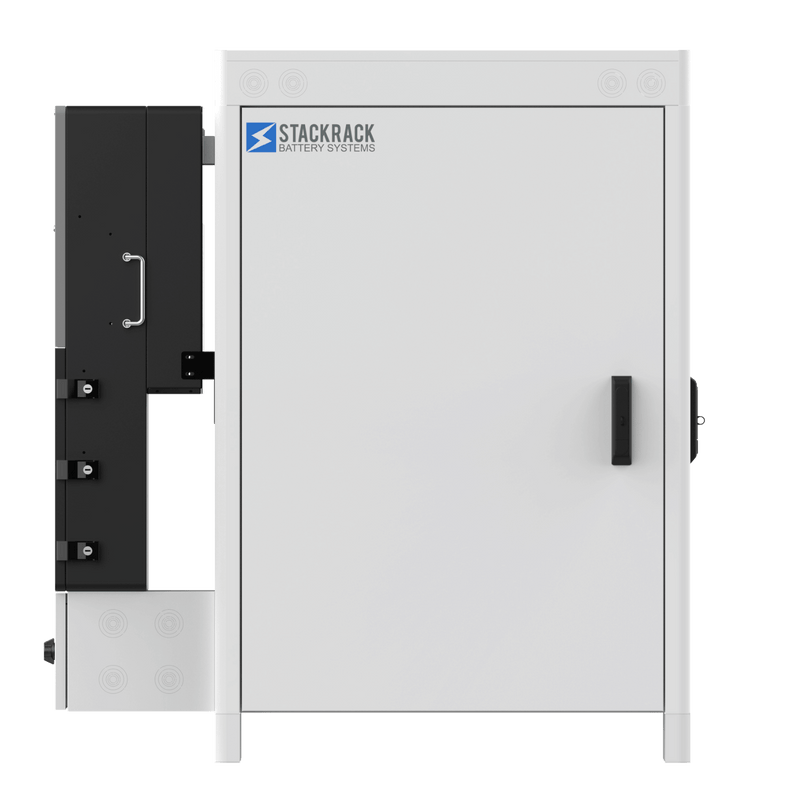

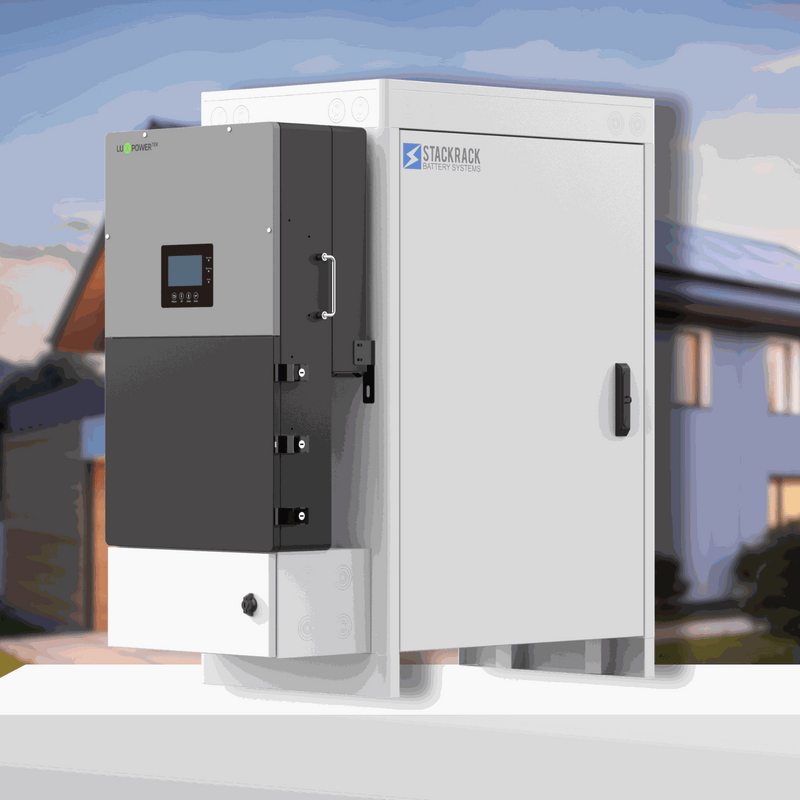

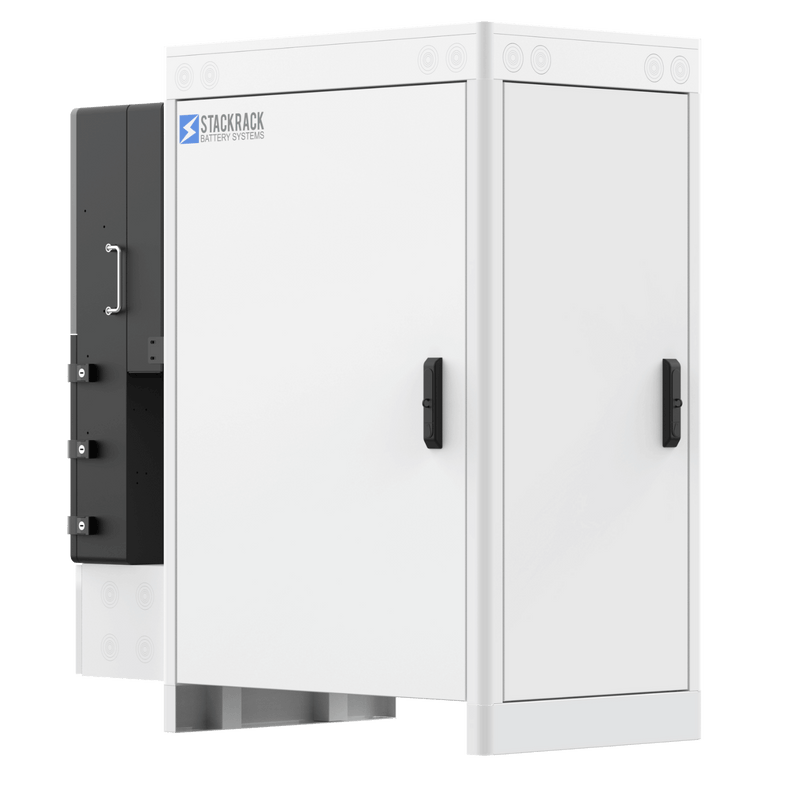

Power Station Pro | Up to 30 kWh Capacity | All-In-One Energy Solution | UL9540, UL9540A, CEC, SGIP

For Grid-Connected Homes: Enjoy whole-home backup, energy savings, and reduced dependence on utility energy.

For Off-Grid Homes: Power your home reliably, independent of the grid, with connections to solar panels and a standby generator.

Mobile Generator: Mobilize the PSP by mounting it on a trailer for on-demand electricity or fitting it with the optional Caster Wheels Kit for easy movement on your property.

Commercial: Link three PSP units together to achieve true 3-phase 208V power, delivering up to 90 kWh for demand peak shaving and vital infrastructure backup.

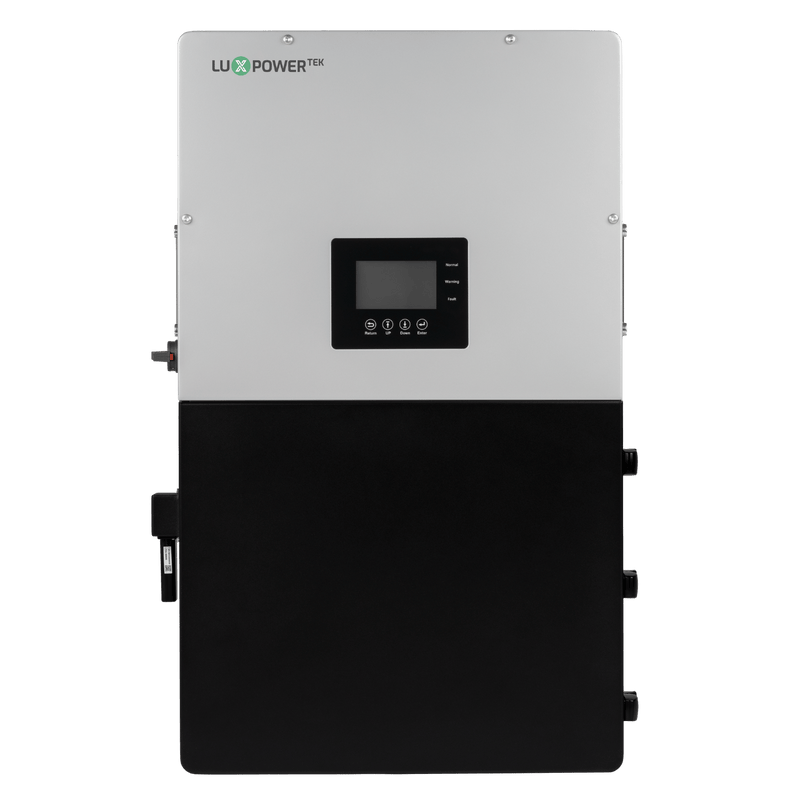

Luxpower 12K Hybrid Inverter

• On-grid & off-grid operation
• 12000W continuous output power
• 18000W DC-coupled solar
• 3x solar MPPTs
• 21000W (90A) AC-coupled solar/generator
• <10ms transfer time
• Remote monitoring & firmware updates
• Parallel up to 10 units
• 200A grid passthrough
• Extra large conduit box for large gauge wire management

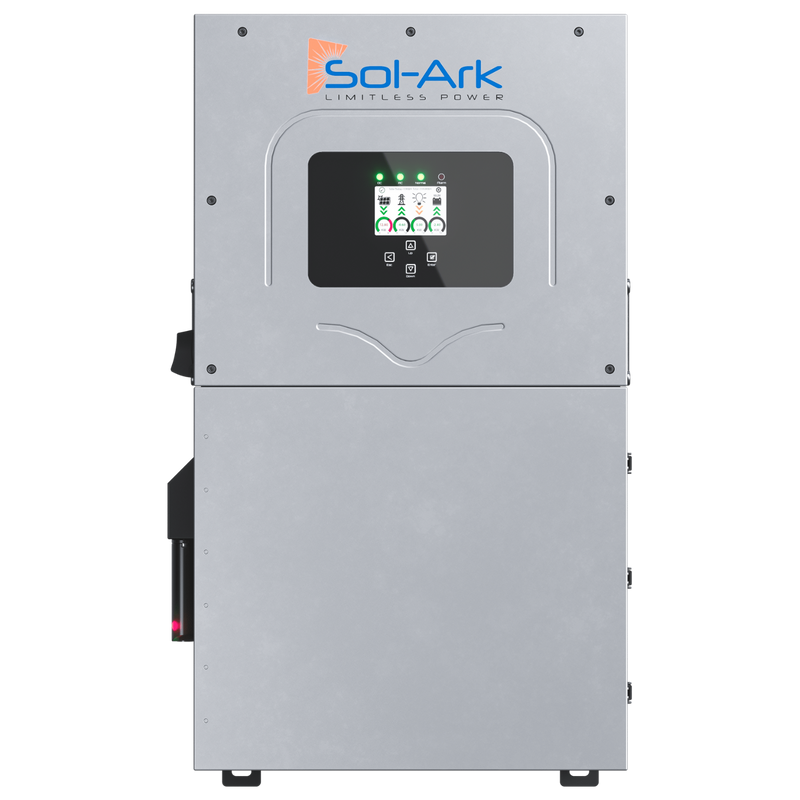

Sol-Ark 15K Hybrid Inverter

• On-grid & off-grid operation
• 12000W continuous output power
• 19500W DC-coupled solar
• 3x solar MPPTs
• 24000W AC-coupled solar/generator
• <10ms transfer time
• Remote monitoring & firmware updates
• Parallel multiple units
• 200A grid passthrough

SR5K-UL Battery Module

• Compact, rack-mount design | 17.9"(D)*18.5"(W)*5.5"(H)
• High-performance, Tier 1 battery cells | >6000 cycles @80% DOD
• Advanced 2nd generation battery management system (BMS)
• Selectable closed-loop inverter communications including Luxpower, Sol-Ark, Schneider, Victron, Growatt and others.
• Parallel up to 64 batteries (325 kWh) while maintaining BMS communication
• LCD screen for battery monitoring and programming
• Built-in aerosol fire-suppression for additional safety
• Battery heating function
• 100A integrated battery breaker
• UL1973, UL9540A, CA CEC listed, SGIP approved equipment

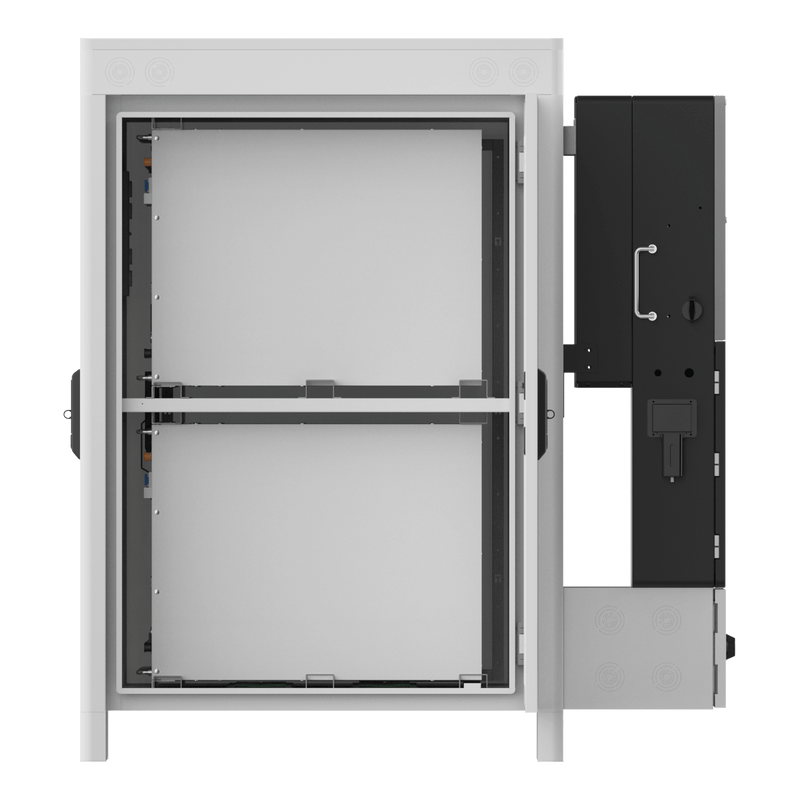

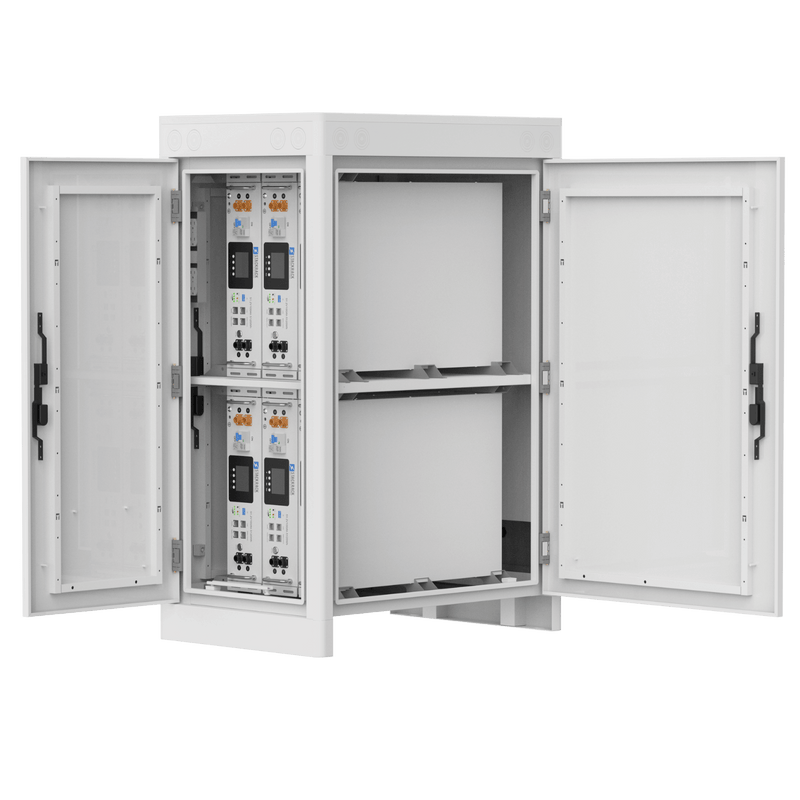

SRB6 Battery Cabinet

• 50.3"(H) x 33.5"(W) x 22.6"(D)
• UV protected, white color finish
• Lockable front and side entry doors
• Removable lid that provides access to cable area, battery busbars and cabinet knockouts
• 120VAC automatic cooling fans with outdoor-rated power plug
• Floor-Mount
• Heavy Duty Copper Busbars
• 2" concentric knockouts on both sides of the cabinet
• Connect multiple cabinets together for additional battery storage

Luxpower 12K or Sol-Ark 15K Hybrid Inverter

Up to 6x StackRack SR5K-UL battery modules

SRB6 Outdoor-Rated Battery Cabinet

SRB6 Cable Kit

Outdoor-Rated Conduit Box

Rain/Snow Inverter Cover

Luxpower 12K Data Sheet

Sol-Ark 15K Data Sheet

SR5K-UL Data Sheet

SR5K-UL User Manual

SR5K-UL Warranty

SR5K-UL UL1973 Certification

SR5K-UL UL9540 Certification

SR5K-UL UL9540A Certificate

SRB6 Data Sheet

SRB6 Installation Manual

The SRB6 Cable Kit includes the following wires and cables for up to securely connect up to 6x SR5K-UL battery modules.

Battery Terminal Cables

• (2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Red), 3/8" ring & open terminal
• (2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Black), 3/8" ring & open terminal
• (6x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Red), plug-in & 5/16" ring terminal
  (6x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Black), plug-in & 5/16" ring terminal

Ground Cables

• (4x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
• (1x) 8 AWG 24" UL1015, (green/yellow), M6 terminal endings
• (1x) 8 AWG 4 ft UL1015, (green/yellow), M6 terminal endings
• (1x) 8 AWG 8 ft, UL1015, (green/yellow), M6 terminal & open ending

Communication Cables

• (4x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
• (1x) Cat6 Ethernet Cable, 24", non-shielded, no-crossover
• (1x) Cat6 Ethernet Cable, 10 ft, non-shielded, no-crossover
