SKU: SRB2/10KWH

SRB2 Battery Kit | up to 10 kWh | SR5K-UL Batteries with SRB2 Battery Cabinet | Outdoor-Rated | UL1973 UL9540A

StackRack
$3,395.00
$3,395.00
Sale Sold out
/
Battery Storage Size:
This is a pre order item. We will ship it when it comes in stock.
Description

This StackRack battery kit offers up to 10 kWh of reliable battery storage in a pre-assembled, outdoor-rated SRB2 battery cabinet. The SRB2 cabinet comes with a wall-mounting bracket. Floor-mounting is optional with the Base Legs Kit. Also included are automatic battery heaters and temperature controlled cooling fans, along with built-in aerosol fire suppression.

The system has seemless closed-loop communication with industry leading inverters, including Sol-Ark, Luxpower, Solis, Megarevo, Victron and others.

Features
SR5K-UL Battery Module:
  • Compact, rack-mount design | 17.9"(D)*18.5"(W)*5.5"(H)
  • High-performance, Tier 1 battery cells | >6000 cycles @80% DOD
  • Advanced 2nd generation battery management system (BMS)
  • Selectable closed-loop inverter communications including Luxpower, Sol-Ark, Schneider, Victron, Growatt and others.
  • Parallel up to 64 batteries (325 kWh) while maintaining BMS communication
  • LCD screen for battery monitoring and programming
  • Built-in aerosol fire-suppression for additional safety
  • Battery heating function
  • 100A integrated battery breaker
  • UL1973, UL9540A, CA CEC listed, SGIP approved equipment

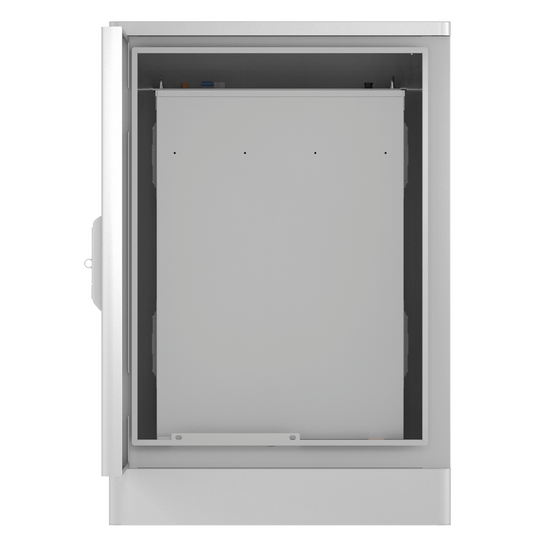

SRB2 Battery Cabinet:
  • 27"(H) x 23.6"(W) x 13"(D)
  • UV protected, white color finish
  • Lockable front entry door
  • Removable lid that provides access to cable area and cabinet knockouts
  • 120VAC automatic cooling fans with outdoor-rated external plug
  • Wall-mount or floor-mount (requires Base Legs Kit)
  • 2" concentric knockouts on both sides of the cabinet
What's Included
Up to 2x StackRack SR5K-UL battery modules
SRB2 Outdoor-Rated Battery Cabinet
SRB2 Cable Kit
Recommended Inverters
Luxpower SNA 6K

Excellent off-grid inverter. Can be used to help save on your energy bill under NEM 3.0 with non-export agreement.

Luxpower LXP 8K

Best for energy bill savings & essential home backup.

Documents
SR5K-UL Data Sheet
SR5K-UL User Manual
SR5K-UL Warranty
SR5K-UL UL1973 Certification
SR5K-UL UL9540A Certificate
SRB2 Data Sheet
SRB2 Cable Kit

The SRB2 Cable Kit includes the following wires and cables for up to securely connect up to 2x SR5K-UL battery modules.


Battery Terminal Cables:
  • (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 10 ft, (Red), plug-in & 5/16" ring terminal
  • (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 10 ft, (Black), plug-in & 5/16" ring terminal
  • (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 6", (Red), plug-in & plug-in terminal
  • (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 6", (Black), plug-in & plug-in terminal
Ground Cables
  • (1x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
  • (1x) 8 AWG 10 ft, UL1015, (green/yellow), M6 terminal & open ending
Communication Cables:
  • (1x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
  • (1x) Cat6 Ethernet Cable, 10 ft, non-shielded, no-crossover
