SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount
SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount
SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount
SRB4 20 kWh
Load image into Gallery viewer, SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount
Load image into Gallery viewer, SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount
Load image into Gallery viewer, SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount
Load image into Gallery viewer, SRB4 20 kWh

SKU: SRB4

SRB4 Battery Cabinet | Up to 20 kWh | Outdoor-rated | Floor-Mount

StackRack
$1,805.00
$1,805.00
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Description

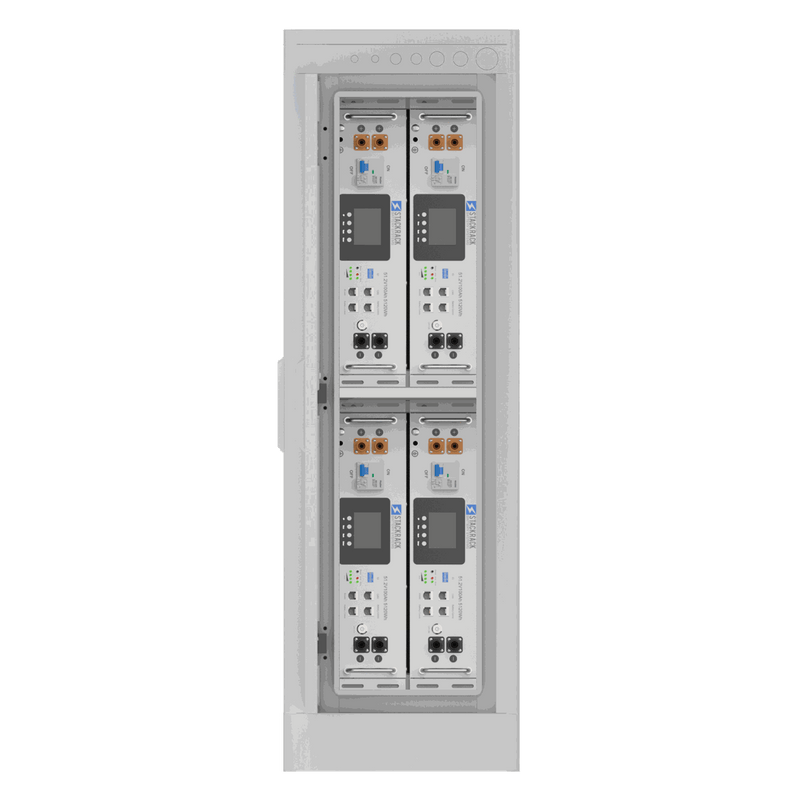

The SRB4 Battery Cabinet is an outdoor-rated enclosure that can hold up to 4x SR5K-UL battery modules for a total energy capacity of 20 kWh. The cabinet is outdoor-rated with automatic, temperature-controlled cooling fans (120VAC) to keep batteries operating at optimal temperature. The cabinet ships pre-assembled for simple plug & play installation. Includes SRB4 Cable Kit.

Features
  • 50.3(H) x 26.8(W) x 15.0"(D)
  • UV protected, white color finish
  • Lockable front and side entry doors
  • Removable lid that provides access to cable area, battery busbars and cabinet knockouts
  • 120VAC automatic cooling fans with outdoor-rated power plug
  • Floor-Mount
  • Heavy Duty Copper Busbars
  • 2" concentric knockouts on both sides of the cabinet
  • Connect multiple cabinets together for additional battery storage
Optional Accessories
  • 150W Temperature-controlled Battery Heater
Documents
SRB4 Data Sheet
SRB4 Cable Kit

The SRB4 Cable Kit includes the following wires and cables for up to securely connect up to 4x SR5K-UL battery modules.

Battery Terminal Cables:
  • Battery Terminal Cables:
    (1x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Red), 3/8" ring & open terminal
  • (1x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Black), 3/8" ring & open terminal
  • (4x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Red), plug-in & 5/16" ring terminal
  • (4x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Black), plug-in & 5/16" ring terminal

Ground Cables:
  • (2x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
  • (2x) 8 AWG 24" UL1015, (green/yellow), M6 terminal endings
  • (2x) 8 AWG 4 ft UL1015, (green/yellow), M6 terminal endings
  • (1x) 8 AWG 10 ft, UL1015, (green/yellow), M6 terminal &
    open ending

Communication Cables:
  • (2x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
  • (2x) Cat6 Ethernet Cable, 24", non-shielded, no-crossover
  • (2x) Cat6 Ethernet Cable, 10 ft, non-shielded, no-crossover
