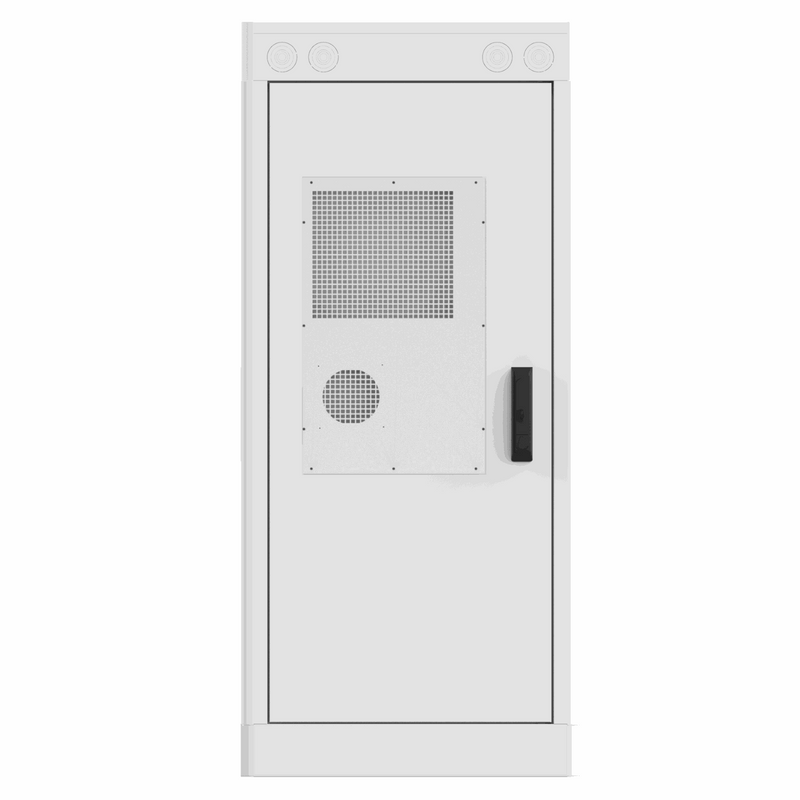

SRB6 Battery Cabinet with Air Conditioner

Load image into Gallery viewer, SRB6 Battery Cabinet

Load image into Gallery viewer, Power Station Pro

Load image into Gallery viewer, SRB6 Battery Cabinet with Air Conditioner

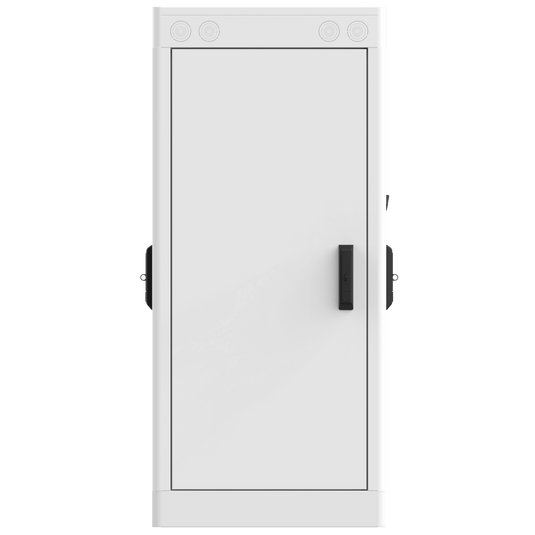

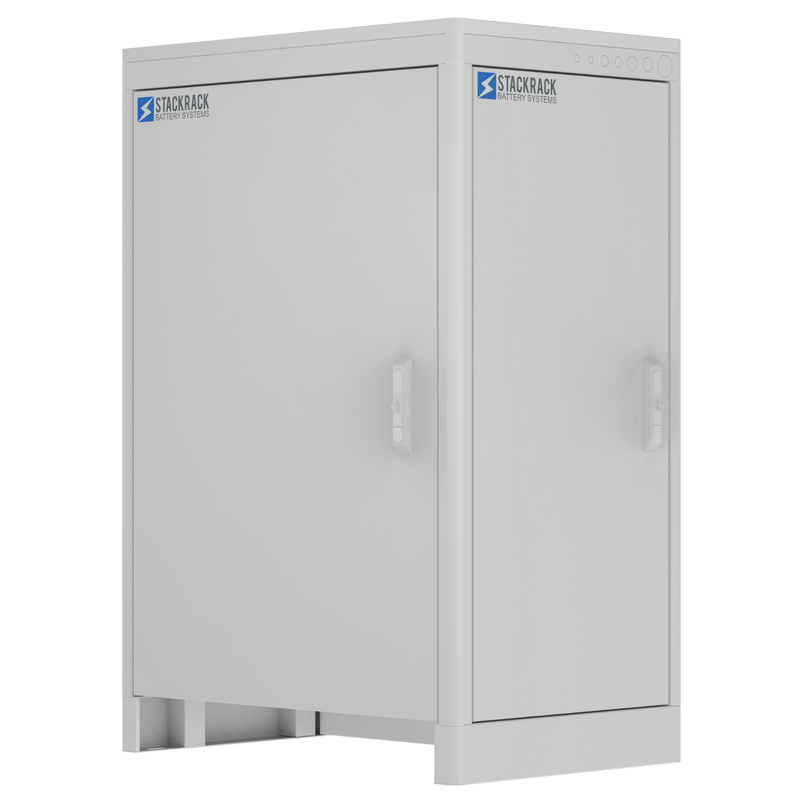

SRB6 Battery Cabinet | Up to 30 kWh | Outdoor-rated | Floor-Mount

Name: SRB6 Battery Cabinet | Up to 30 kWh | Outdoor-rated | Floor-Mount
Brand: StackRack
Price: 1995.0 USD
Availability: InStock

StackRack

$1,995.00

Sale Sold out

120VAC Automatic Cooling Fans Sold out

500W DC Air Conditioner/Heater Sold out

Quantity must be 1 or more

Description

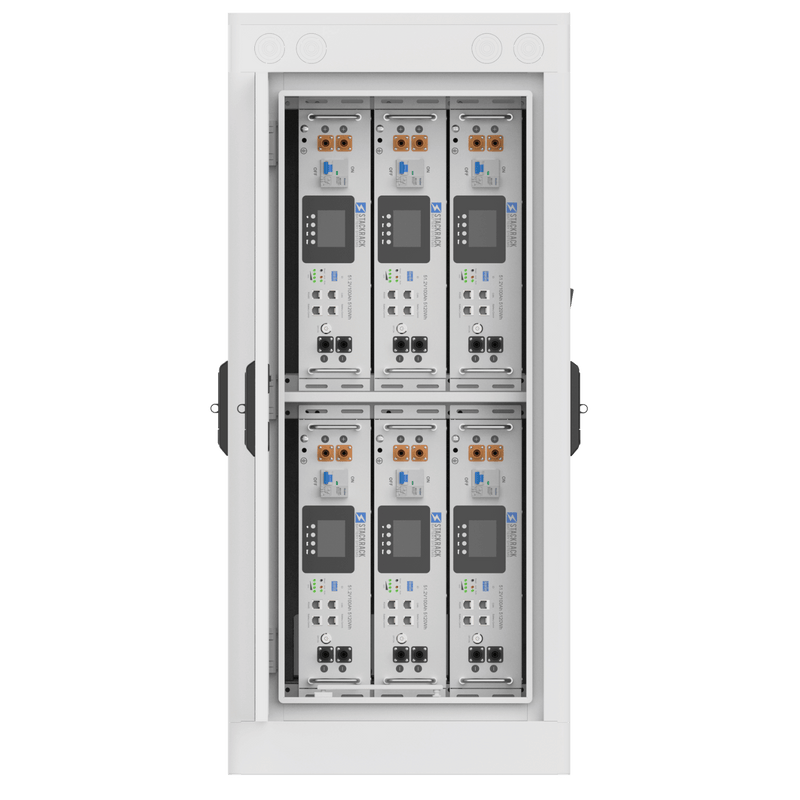

The SRB6 Battery Cabinet is an outdoor-rated enclosure that can hold up to 6x SR5K-UL battery modules for a total energy capacity of 30 kWh. The cabinet is outdoor-rated with automatic, temperature-controlled cooling fans (120VAC) to keep batteries operating at optimal temperature. The cabinet ships pre-assembled for simple plug & play installation. Includes SRB6 Cable Kit.

Features

50.3"(H) x 33.5"(W) x 22.6"(D)
UV protected, white color finish

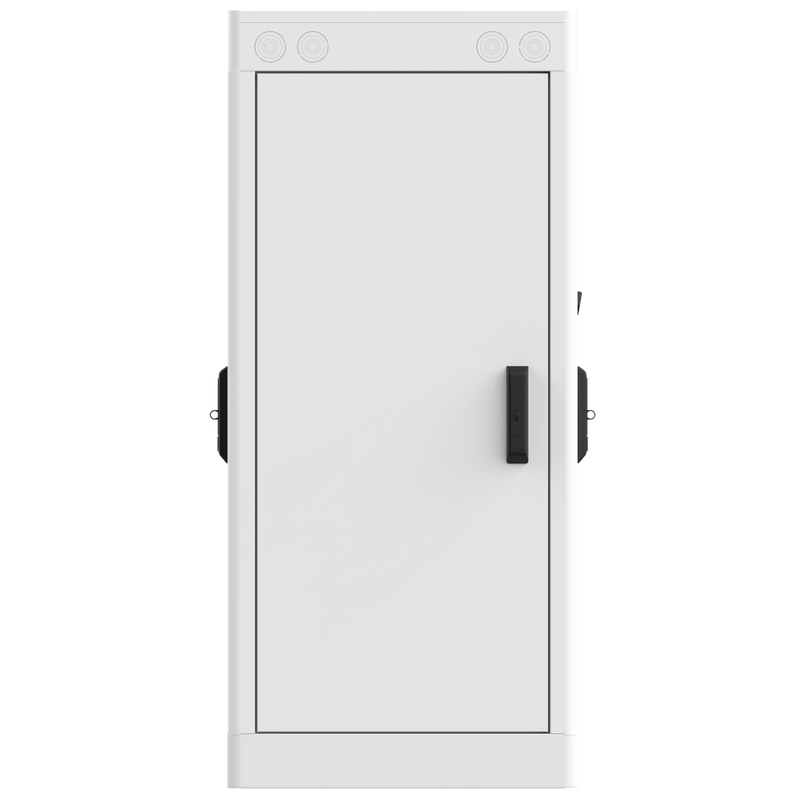

Lockable front and side entry doors
Removable lid that provides access to cable area, battery busbars and cabinet knockouts
120VAC automatic cooling fans with outdoor-rated power plug
Floor-Mount
Heavy Duty Copper Busbars
2" concentric knockouts on both sides of the cabinet
Connect multiple cabinets together for additional battery storage

Optional Accessories

150W Temperature-controlled Battery Heater

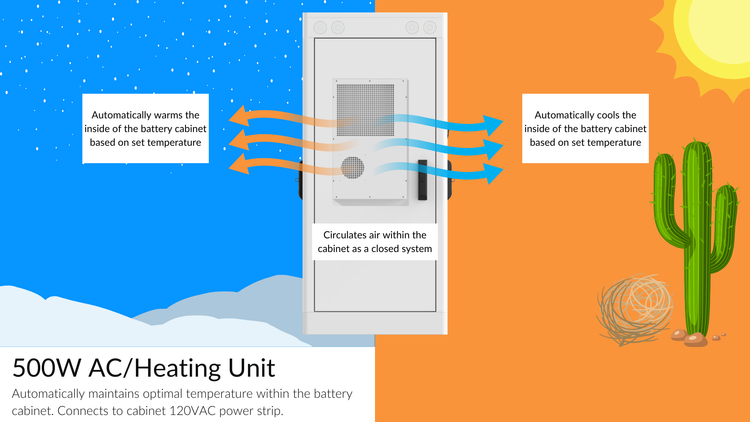

500W AC Air Conditioner/Heater

Conduit Box (Luxpower 12K/EG4 18K PV)

Conduit Box (Sol-Ark 15K)

Rain/Snow Inverter Cover

Caster Legs Kit

Documents

SRB6 Data Sheet

SRB6 / Power Station Pro Installation Manual

Power Station Pro Commissioning Guide (Luxpower)

Power Station Pro Commissioning Guide (Sol-Ark)

SRB6 Cable Kit

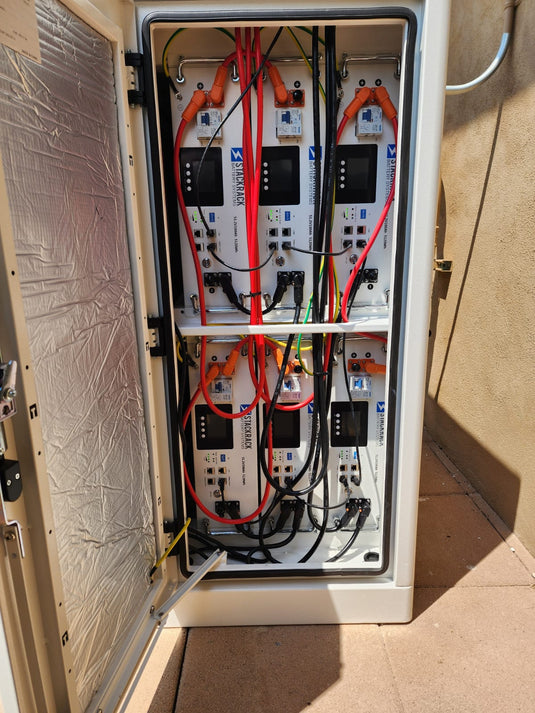

The SRB6 Cable Kit includes the following wires and cables for up to securely connect up to 6x SR5K-UL battery modules.

Battery Terminal Cables

(2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Red), 3/8" ring & open terminal
(2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Black), 3/8" ring & open terminal
(6x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Red), plug-in & 5/16" ring terminal
(6x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Black), plug-in & 5/16" ring terminal

Ground Cables

(4x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
(1x) 8 AWG 24" UL1015, (green/yellow), M6 terminal endings
(1x) 8 AWG 4 ft UL1015, (green/yellow), M6 terminal endings
(1x) 8 AWG 8 ft, UL1015, (green/yellow), M6 terminal & open ending

Communication Cables

(4x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
(1x) Cat6 Ethernet Cable, 24", non-shielded, no-crossover
(1x) Cat6 Ethernet Cable, 10 ft, non-shielded, no-crossover

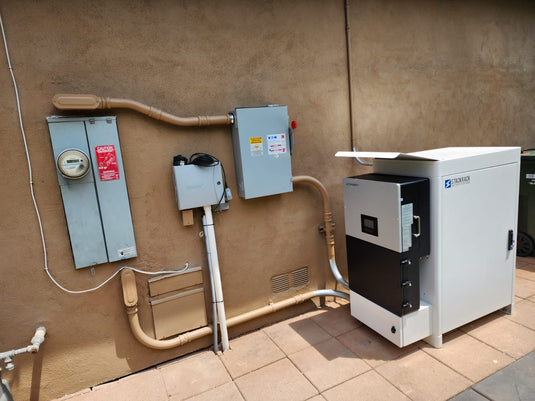

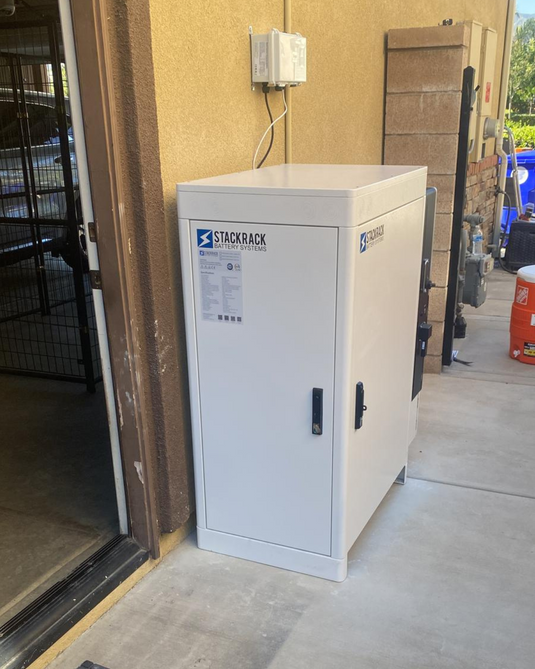

Installations

SRB6 Battery Cabinet

Frequently Asked Questions

How long does it take to install?

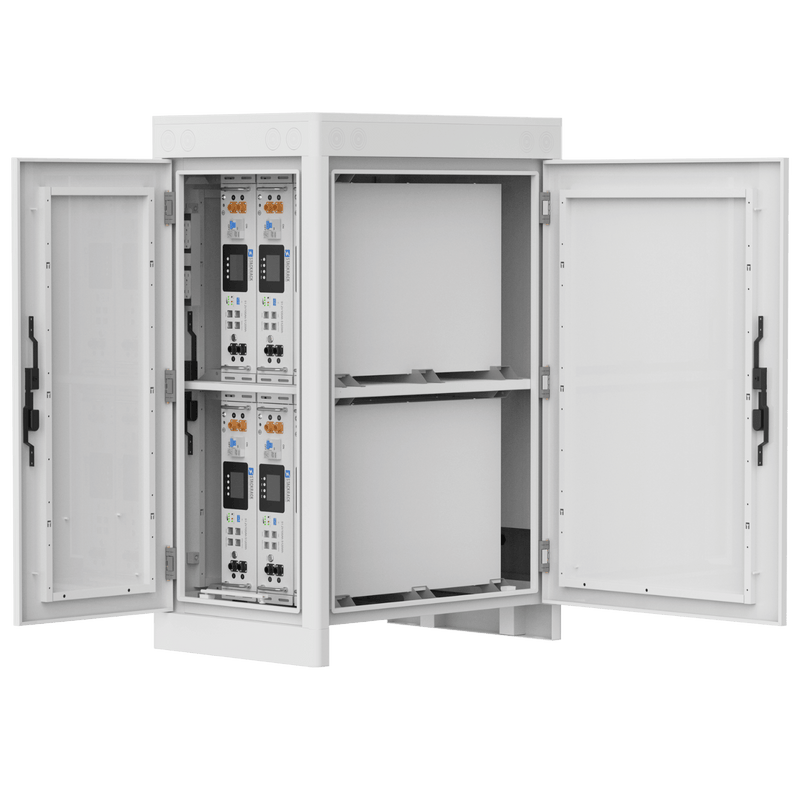

Less than 1 hour for most projects. The cabinet is pre-assembled except for the base legs, which take 5-10 minutes to install. Batteries can be installed from either the front or side doors and usually takes 2-3 minutes per battery.

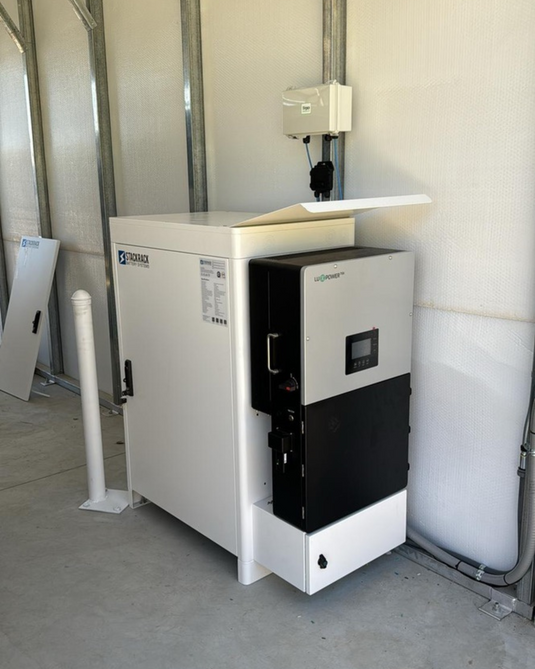

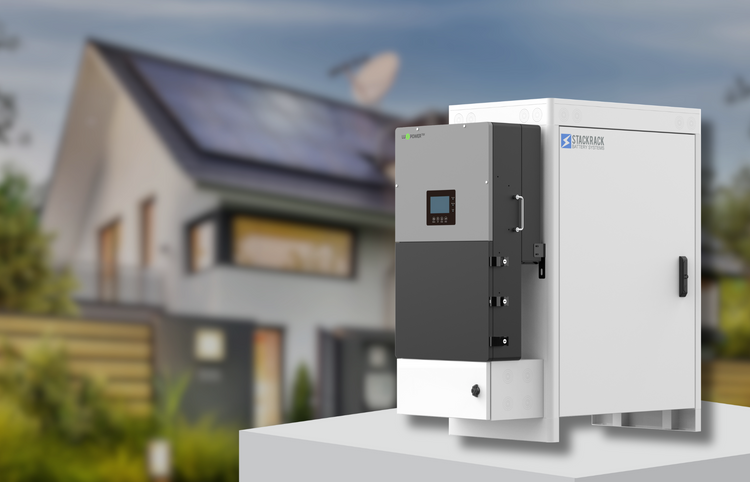

Which inverters can I mount on the cabinet?

Luxpower 12K (EG4 18K PV) & Sol-Ark 15K.

What about rain/snow on the inverter if I mount it on the cabinet?

We offer an optional rain/snow cover that attaches to the top of the cabinet and protects the inverter.

Can you connect multiple battery cabinets together?

Yes. The busbars and knockout holes make connecting multiple cabinets simple.

How many inverters can I connect to the SRB6 battery cabinet?

It depends on the number of batteries you install. Eack SR5K-UL battery module has up to 100A continuous discharge (50A recommended), so six batteries would allow up to 600A max discharge or 3x Luxpower SNA 6K inverters, 2x Luxpower 12K/Sol-Ark 15Ks.

The busbar ratings in the cabinet are 1000A.
