SKU: SRB10

SRB10 Battery Cabinet | Up to 50 kWh | Outdoor-rated | Floor-Mount

StackRack
$2,945.00
$2,945.00
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Description

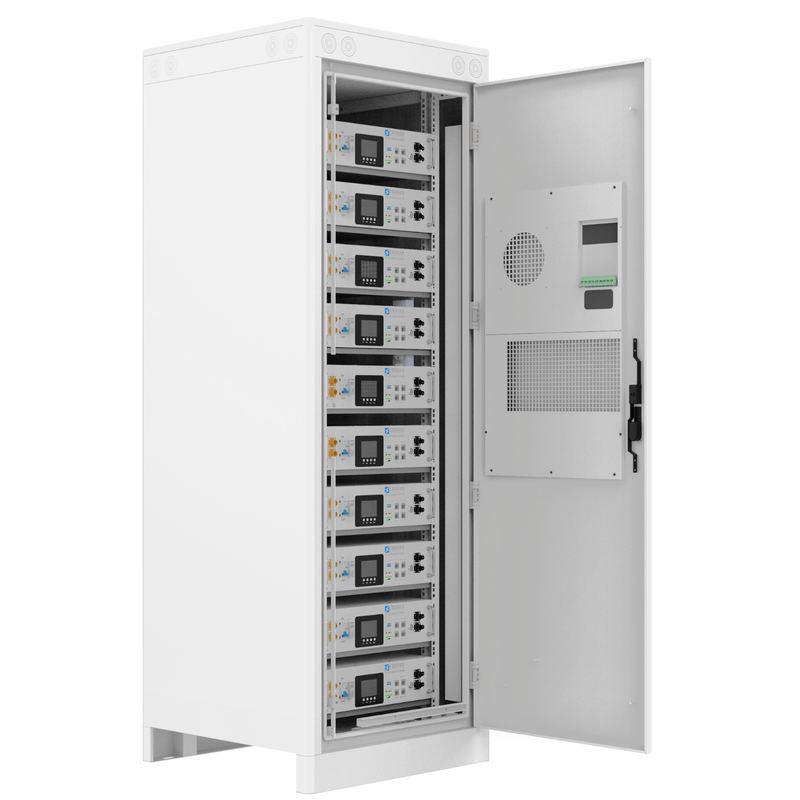

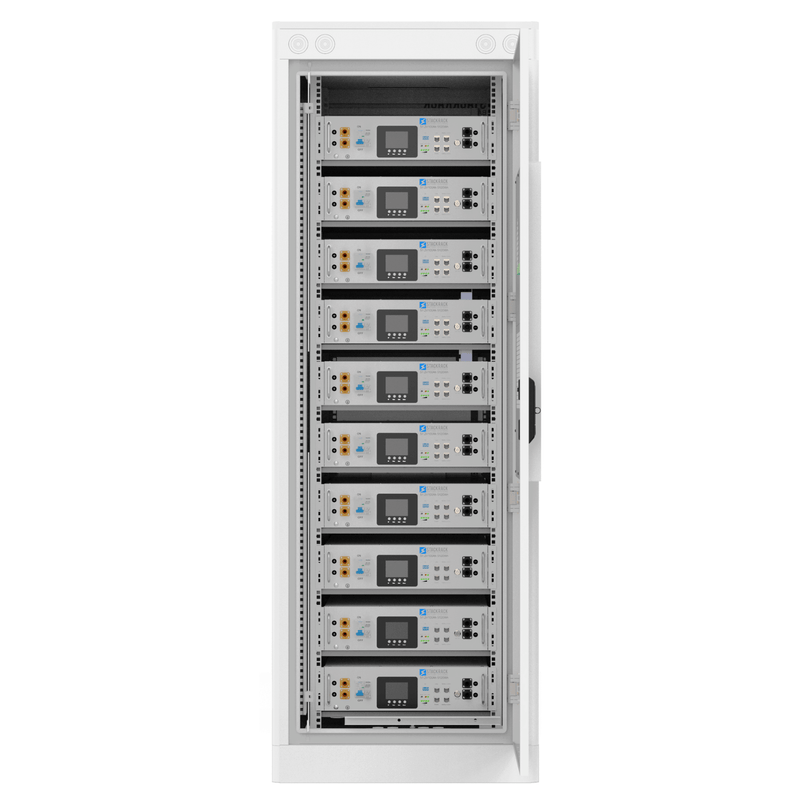

The SRB10 Battery Cabinet is an outdoor-rated enclosure that can hold up to 10x SR5K-UL battery modules for a total energy capacity of 50 kWh. The cabinet is outdoor-rated with automatic, temperature-controlled cooling fans (120VAC) to keep batteries operating at optimal temperature. The cabinet ships pre-assembled for simple plug & play installation. Includes SRB10 Cable Kit.

Features
  • 78.4"(H) x 27.6"(W) x 27.6"(D)
  • UV protected, white color finish
  • Lockable front and side entry doors
  • Removable lid that provides access to cable area, battery busbars and cabinet knockouts
  • 120VAC automatic cooling fans with outdoor-rated power plug
  • Floor-Mount
  • Heavy Duty Copper Busbars
  • 2" concentric knockouts on both sides of the cabinet
  • Connect multiple cabinets together for additional battery storage

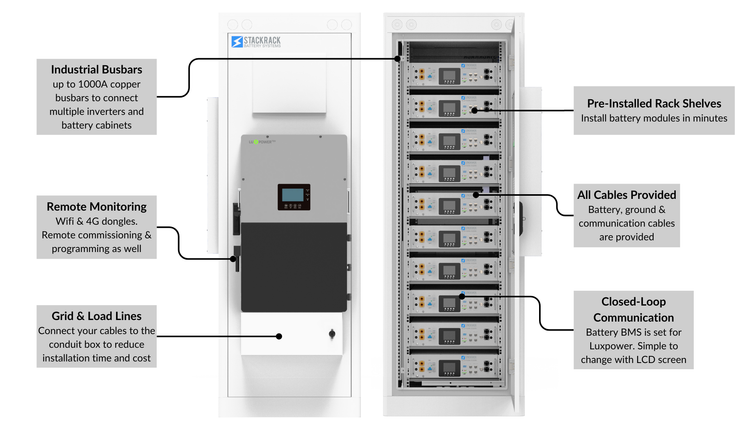

  • Mount Luxpower 12K inverter on back of cabinet
Optional Accessories

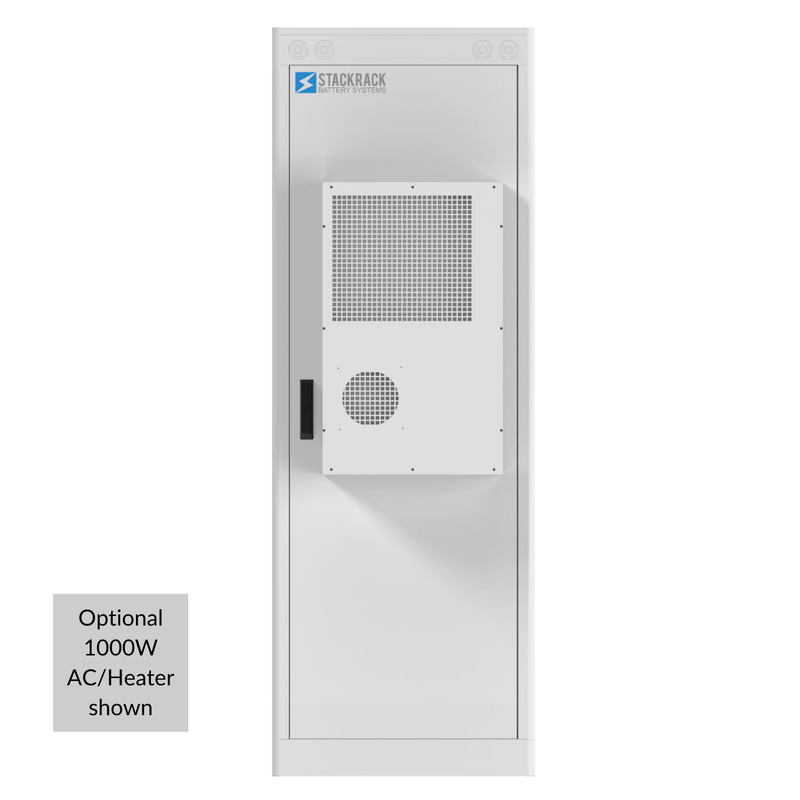

1000W AC Air Conditioner/Heater
Conduit Box (Luxpower 12K/EG4 18K PV)
Conduit Box (Sol-Ark 15K)
Documents
SRB10 Data Sheet
SRB10 Cable Kit

The SRB10 Cable Kit includes the following wires and cables for up to securely connect up to 10x SR5K-UL battery modules.

Battery Terminal Cables
  • (2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Red), 3/8" ring & open terminal
  • (2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Black), 3/8" ring & open terminal
  • (10x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 12 inch, (Red), plug-in & 5/16" ring terminal
  • (10x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 12", (Black), plug-in & 5/16" ring terminal
Ground Cables
  • (9x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
  • (2x) 8 AWG 6 ft UL1015, (green/yellow), M6 terminal endings
Communication Cables
  • (9x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
    (1x) Cat6 Ethernet Cable, 10 ft, non-shielded, no-crossover

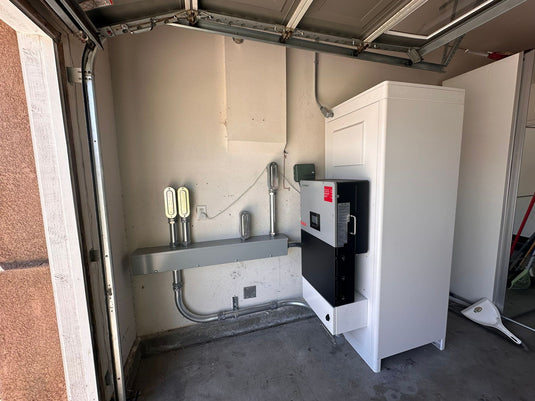

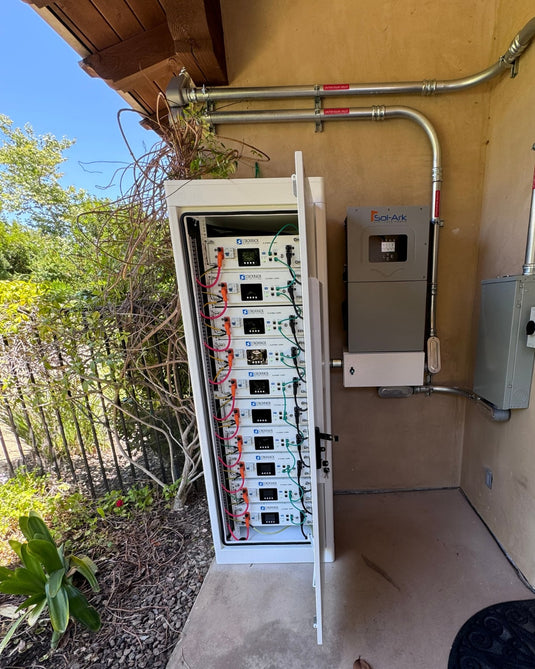

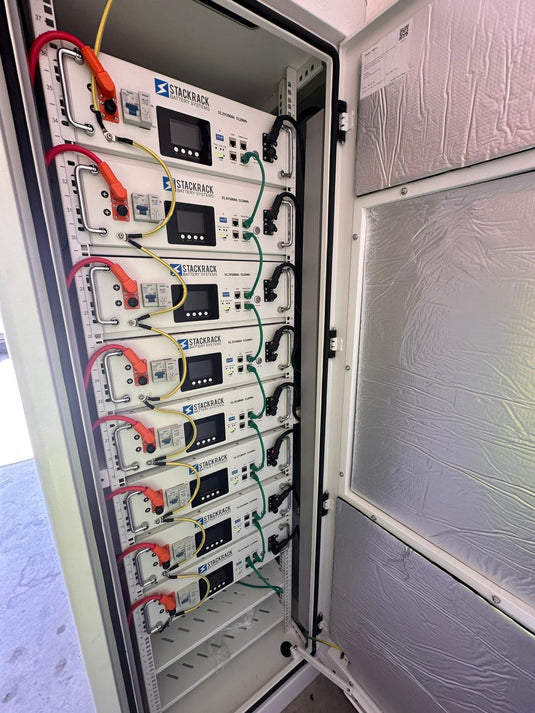

Installations

Frequently Asked Questions
SRB6 Battery Cabinet

Frequently Asked Questions

How long does it take to install?

Less than 1 hour for most projects. The cabinet is pre-assembled except for the base legs, which take 5-10 minutes to install. Batteries can be installed from either the front or side doors and usually takes 2-3 minutes per battery.

Which inverters can I mount on the cabinet?

Luxpower 12K (EG4 18K PV) & Sol-Ark 15K.

Can you connect multiple battery cabinets together?

Yes. The busbars and knockout holes make connecting multiple cabinets simple.

Can I start with less batteries and add more in the future?

Yes. In fact, thats very common with our installers/customers. Adding an additional battery will only take 5-10 minutes.
