SKU: SRBracket

SR Bracket | Stack up to 40 kWh | Indoor-rated | Floor-Mount

StackRack
$88.00
$88.00
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Description

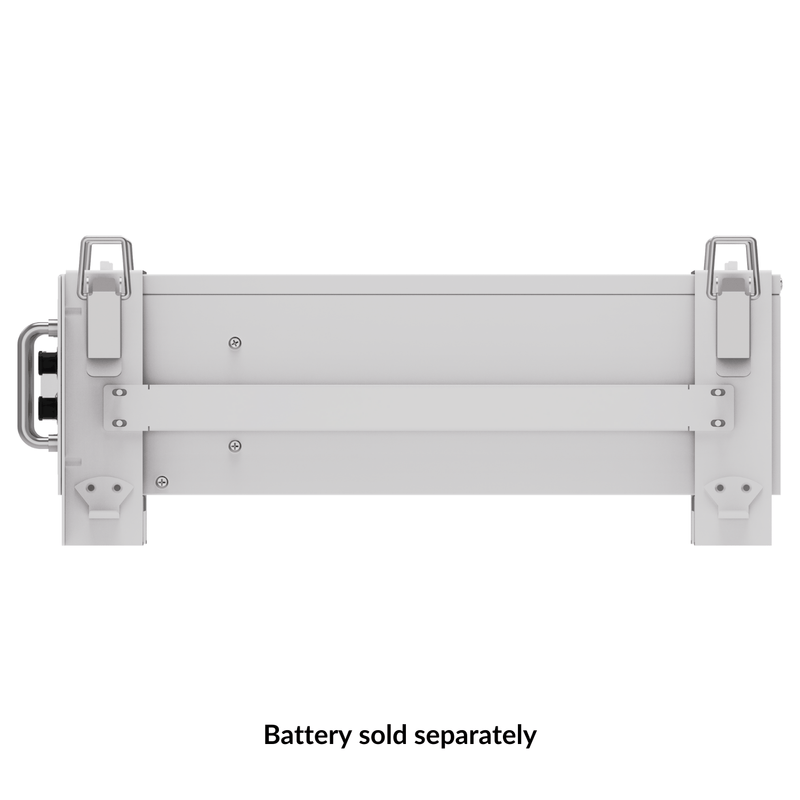

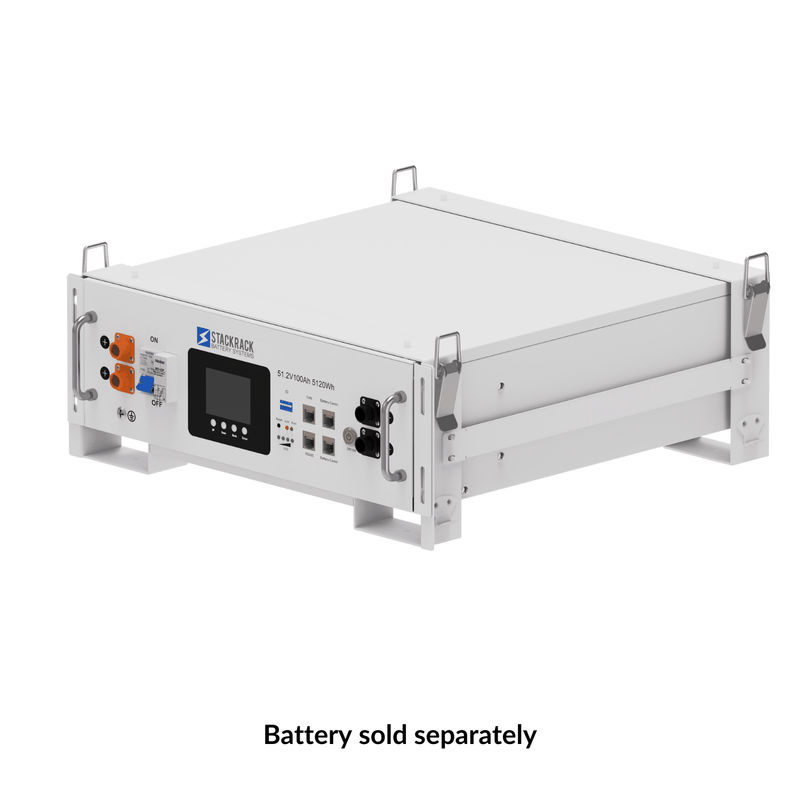

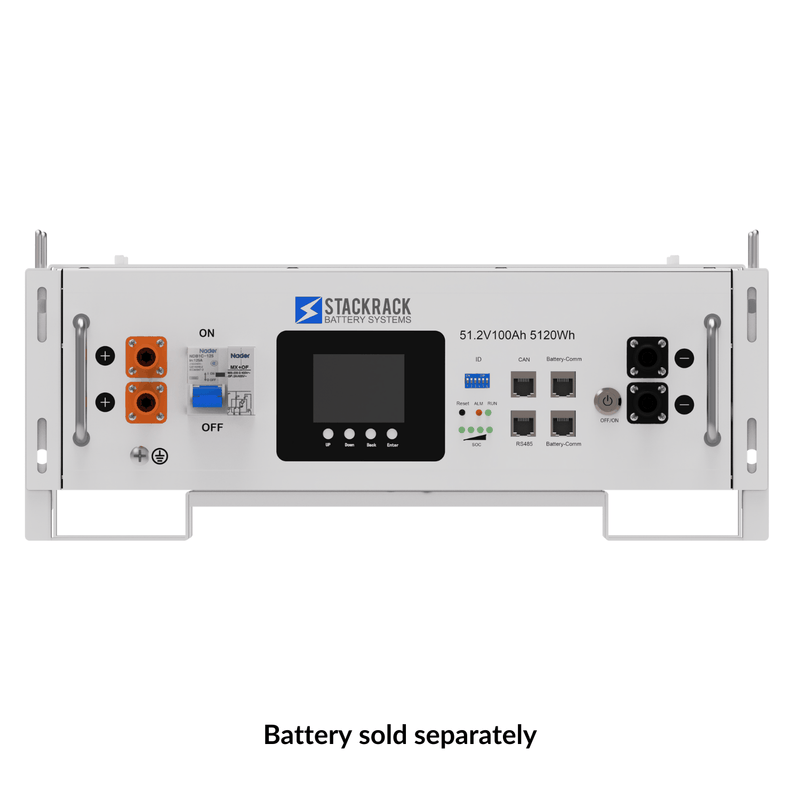

SR Brackets are an open battery stacking system that is flexible, secure, and sets up in only a few minutes. Stack up to 8x SR5K-UL battery modules securely using the interlock hinges. Space gaps in between batteries facilitates passive cooling. Parallel the batteries together using the optional 1000A Battery Combiner Box. Includes SR Brackets Cable Kit.

This is for one SR Bracket & SR Bracket Cable Kit.

Features
SR Bracket
  • Assembles in minutes using minimal tools
  • White, powder-coated finish
  • Galvanized steel frame distributes weight along brackets and off of batteries.

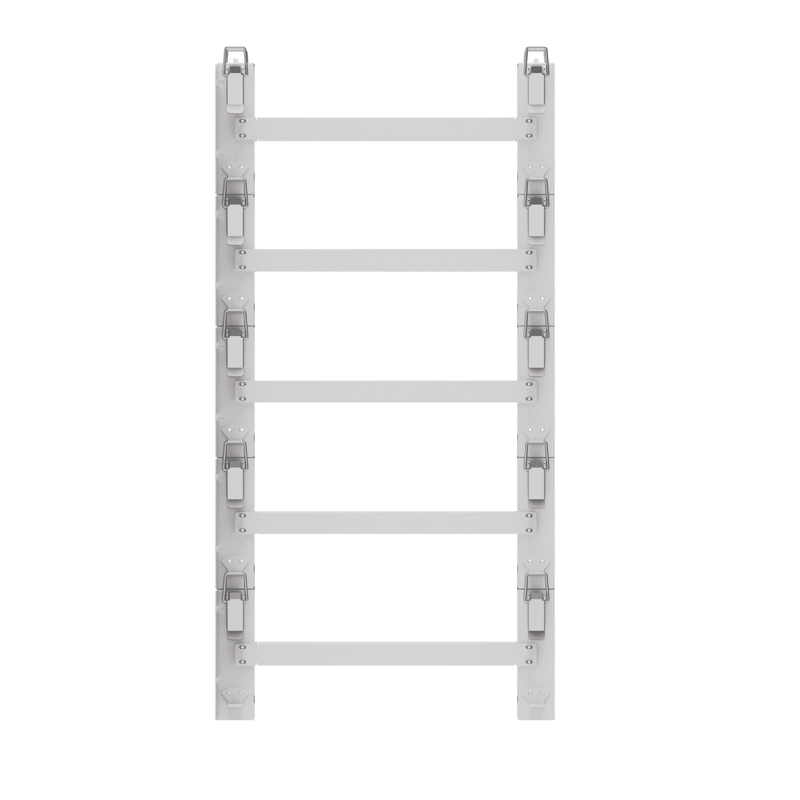

  • Four hinges per bracket securely attach brackets to each other.

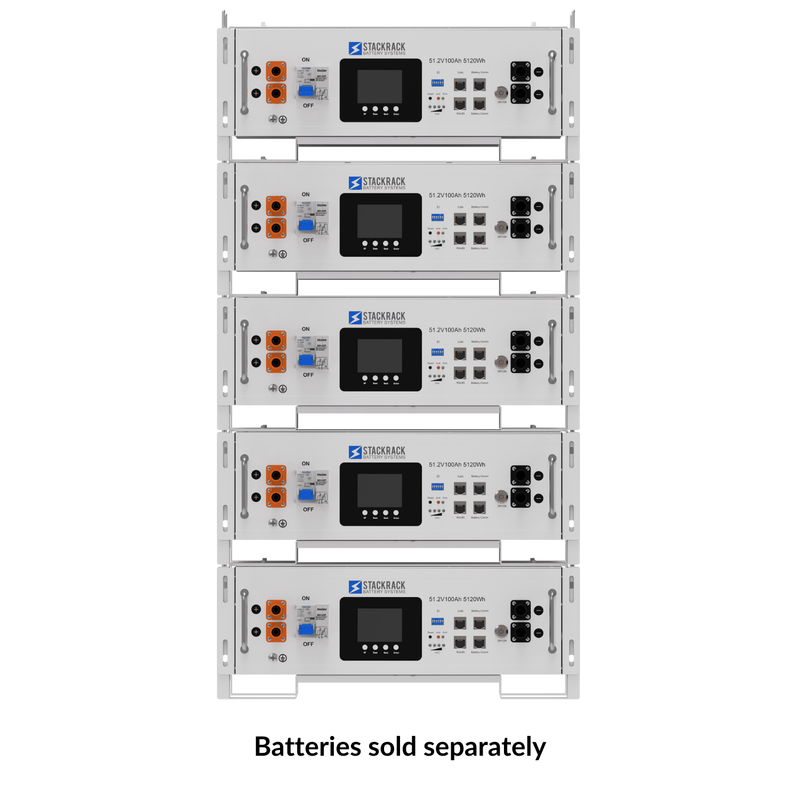

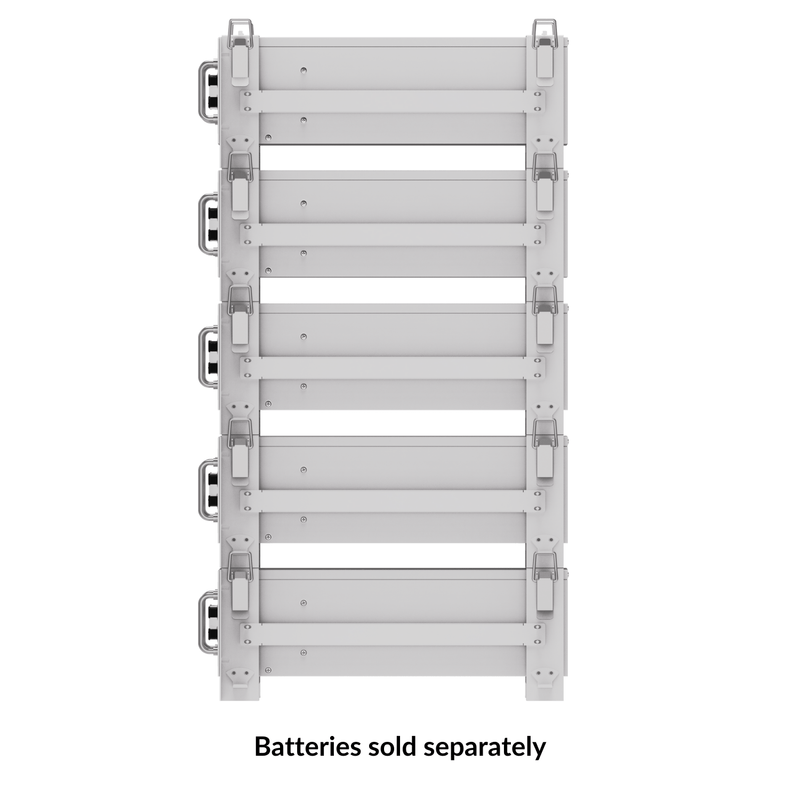

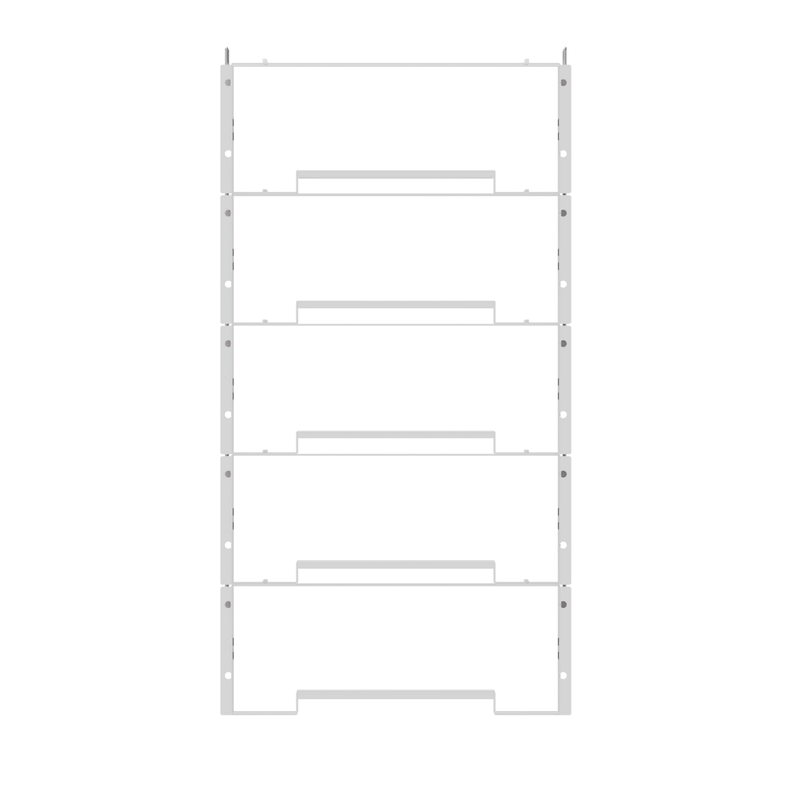

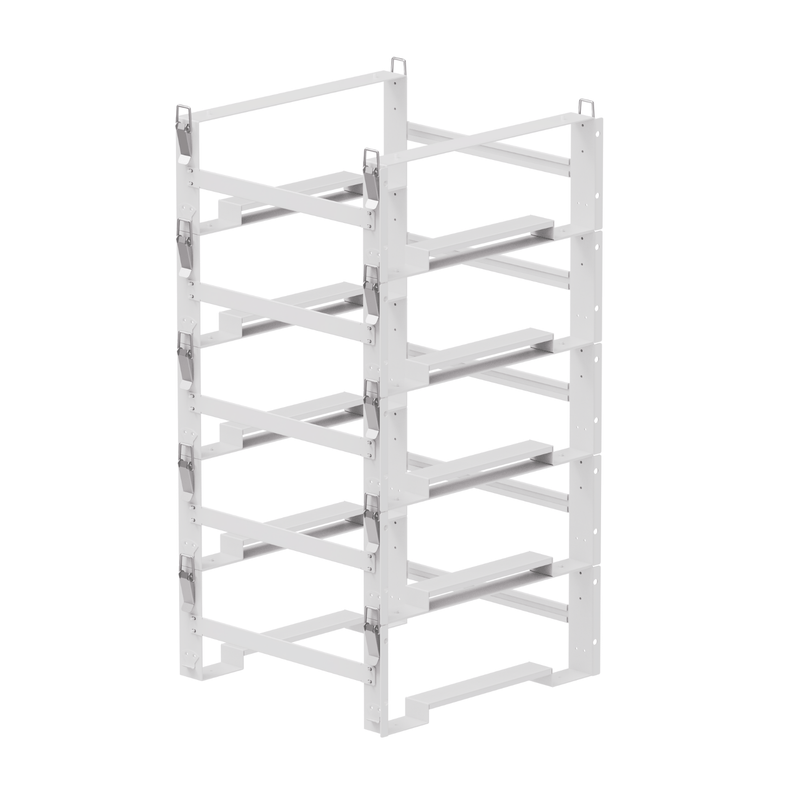

  • Securely stack up to 8x SR5K-UL battery modules (40 kWh), along with a battery combiner box
Optional Accessories
1000A Battery Combiner Box
Documents
SR Brackets Data Sheet
SR Brackets Cable Kit

The SR Brackets Cable Kit includes the following wires and cables for up to securely connect one SR5K-UL battery module.

Battery Terminal Cables
  • (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Red), plug-in & 5/16" ring terminal
  • (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Black), plug-in & 5/16" ring terminal
Ground Cables
  • (1x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
Communication Cables
  • (1x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover

Installations

Frequently Asked Questions
SRB6 Battery Cabinet

Frequently Asked Questions

How can I secure a stack of SR Brackets or the floor or wall?

Yes. You can secure the bottom bracket to the floor using the four available screw holes. You can also secure the upper portion of the bracket to backwalls using a furniture/earthquake cable

Can I start with less batteries and add more in the future?

Yes. In fact, thats very common with our installers/customers. Adding an additional battery will only take 5-10 minutes.
