SKU: SRB10/50KWH

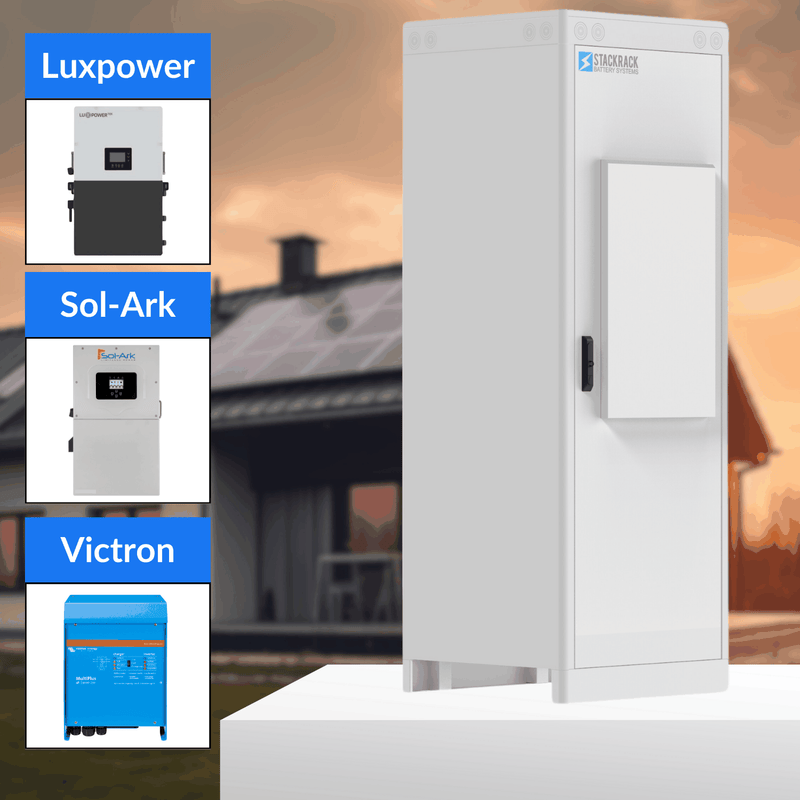

SRB10 Battery Kit | up to 50 kWh | SR5K-UL Batteries With SRB10 Battery Cabinet | Outdoor-Rated | UL1973 UL9540A

StackRack
$16,780.00
$16,780.00
Sale Sold out
/
Battery Storage Size:
This is a pre order item. We will ship it when it comes in stock.
Description

This StackRack SRB10 battery kit offers up to 50 kWh of reliable battery storage in a pre-assembled, outdoor-rated SRB10 battery cabinet. The system includes heavy-duty copper busbars and battery cables. Also included are automatic battery heaters and temperature controlled cooling fans, along with built-in aerosol fire suppression.

The system has seemless closed-loop communication with industry leading inverters, including Sol-Ark, Luxpower, Solis, Megarevo, Victron and others.

Features
SR5K-UL Battery Module:
  • Compact, rack-mount design | 17.9"(D)*18.5"(W)*5.5"(H)
  • High-performance, Tier 1 battery cells | >6000 cycles @80% DOD
  • Advanced 2nd generation battery management system (BMS)
  • Selectable closed-loop inverter communications including Luxpower, Sol-Ark, Schneider, Victron, Growatt and others.
  • Parallel up to 64 batteries (325 kWh) while maintaining BMS communication
  • LCD screen for battery monitoring and programming
  • Built-in aerosol fire-suppression for additional safety
  • Battery heating function
  • 100A integrated battery breaker
  • UL1973, UL9540A, CA CEC listed, SGIP approved equipment

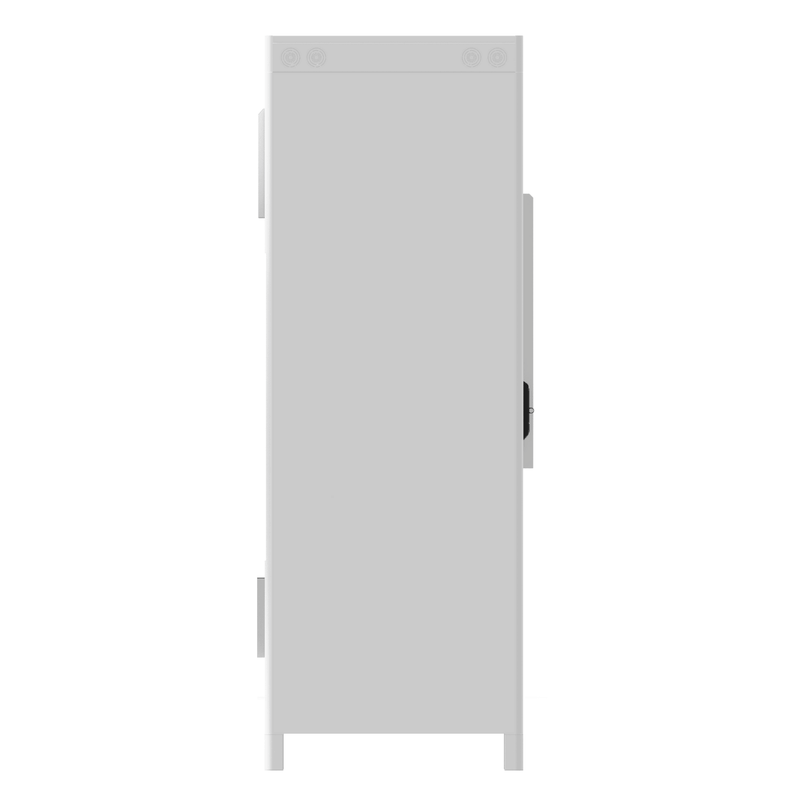

SRB10 Battery Cabinet:
  • 78.4"(H) x 27.6"(W) x 27.6"(D)
  • UV protected, white color finish
  • Lockable front and side entry doors
  • Removable lid that provides access to cable area, battery busbars and cabinet knockouts
  • 120VAC automatic cooling fans with outdoor-rated power plug
  • Floor-Mount
  • Heavy Duty Copper Busbars
  • 2" concentric knockouts on both sides of the cabinet
  • Connect multiple cabinets together for additional battery storage
  • Mount Luxpower 12K inverter on back of cabinet
What's Included
Up to 10x StackRack SR5K-UL battery modules
SRB10 Outdoor-Rated Battery Cabinet
SRB10 Cable Kit
Recommended Inverters
Luxpower LXP 8K

Best for energy bill savings & essential home backup

Luxpower LXP 12K

Ideal for whole-home backup

Sol-Ark 15K

Premium option for whole-home backup

Documents
SR5K-UL Data Sheet
SR5K-UL User Manual
SR5K-UL Warranty
SR5K-UL UL1973 Certification
SR5K-UL UL9540A Certificate
SRB10 Data Sheet
SRB10 Cable Kit

The SRB10 Cable Kit includes the following wires and cables for up to securely connect up to 10x SR5K-UL battery modules.

Battery Terminal Cables
  • (2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Red), 3/8" ring & open terminal
  • (2x) 1/0 AWG UL10269 105°C 1000V 215A minimum ampacity 8 ft (Black), 3/8" ring & open terminal
  • (10x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 12 inch, (Red), plug-in & 5/16" ring terminal
  • (10x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 12", (Black), plug-in & 5/16" ring terminal
Ground Cables
  • (9x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings
  • (2x) 8 AWG 6 ft UL1015, (green/yellow), M6 terminal endings
Communication Cables
  • (9x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
    (1x) Cat6 Ethernet Cable, 10 ft, non-shielded, no-crossover
