SR Brackets Battery Kit | Up to 40 kWh | SR5K-UL Batteries With Stackable SR Brackets | UL1973, UL9540A

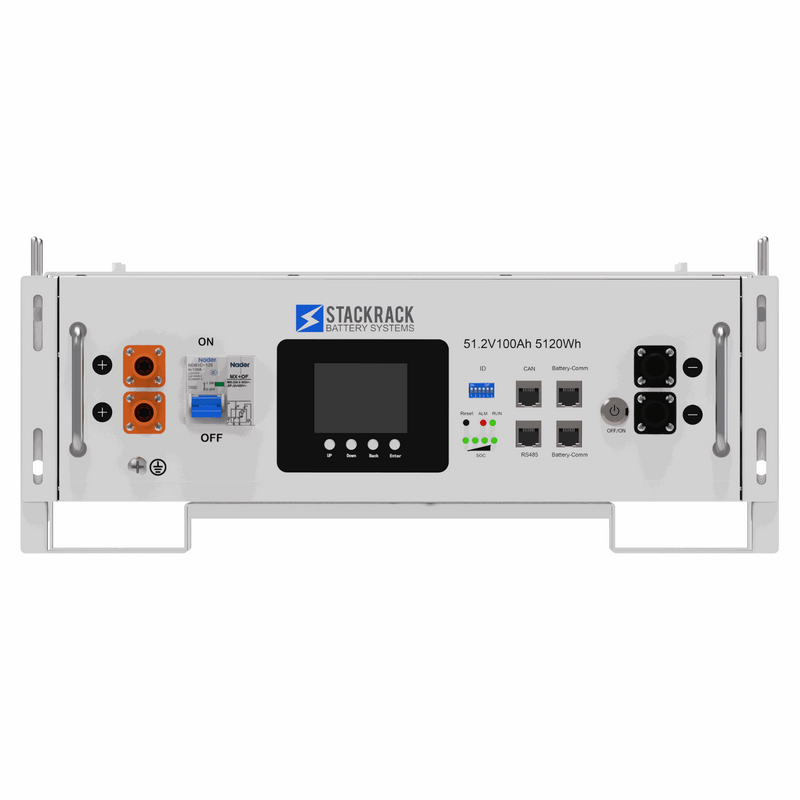

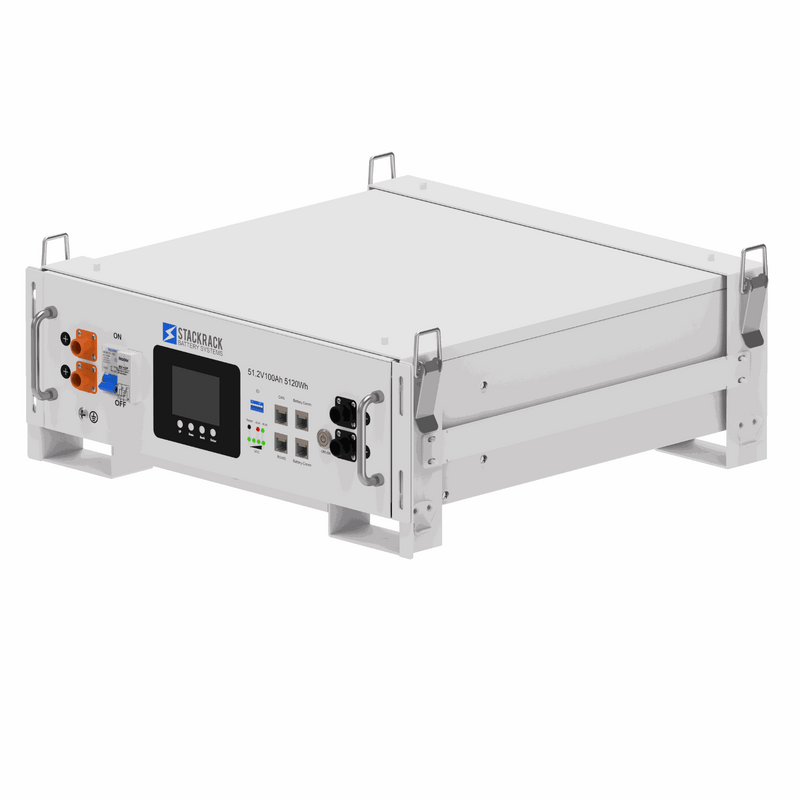

SR5K-UL Battery Module

• Compact, rack-mount design | 17.9"(D)*18.5"(W)*5.5"(H)
• High-performance, Tier 1 battery cells | >6000 cycles @80% DOD
• Advanced 2nd generation battery management system (BMS)
• Selectable closed-loop inverter communications including Luxpower, Sol-Ark, Schneider, Victron, Growatt and others.

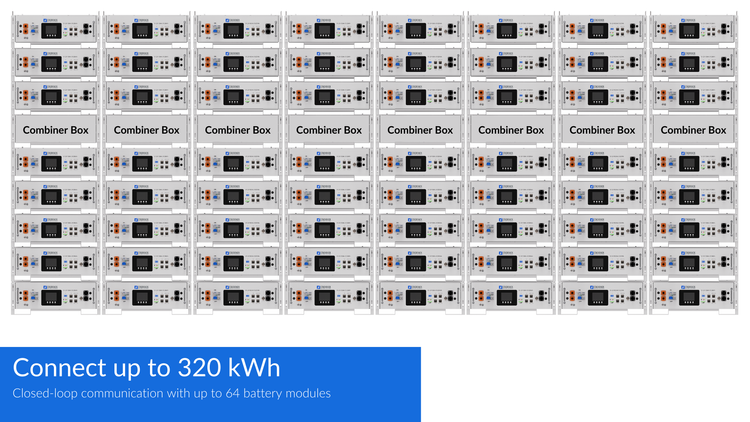

• Parallel up to 64 batteries (325 kWh) while maintaining BMS communication
• LCD screen for battery monitoring and programming

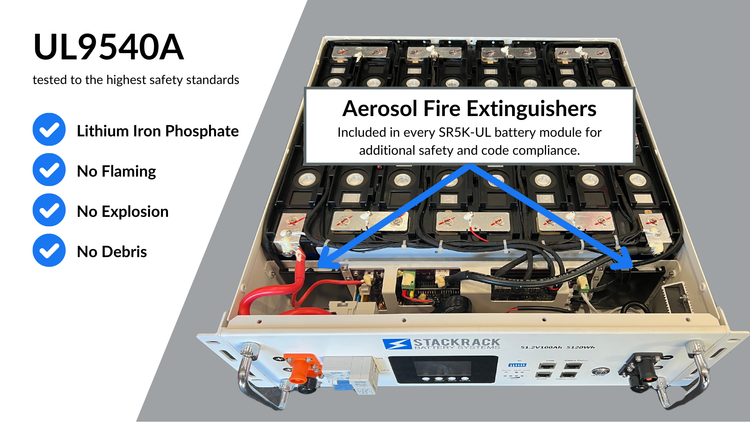

• Built-in aerosol fire-suppression for additional safety
• Battery heating function
• 100A integrated battery breaker
• UL1973, UL9540A, CA CEC listed, SGIP approved equipment

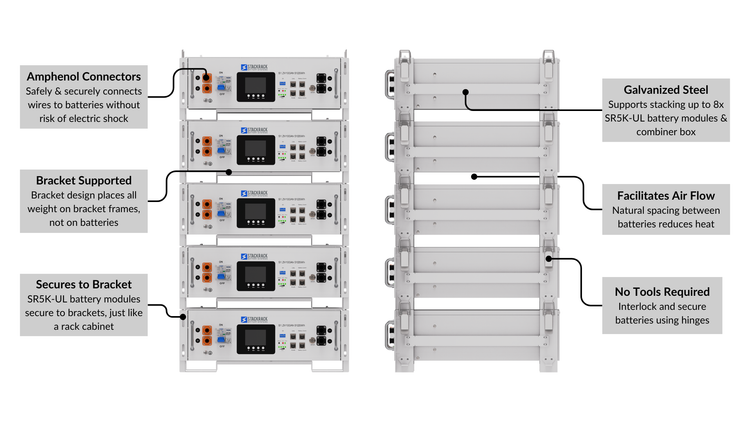

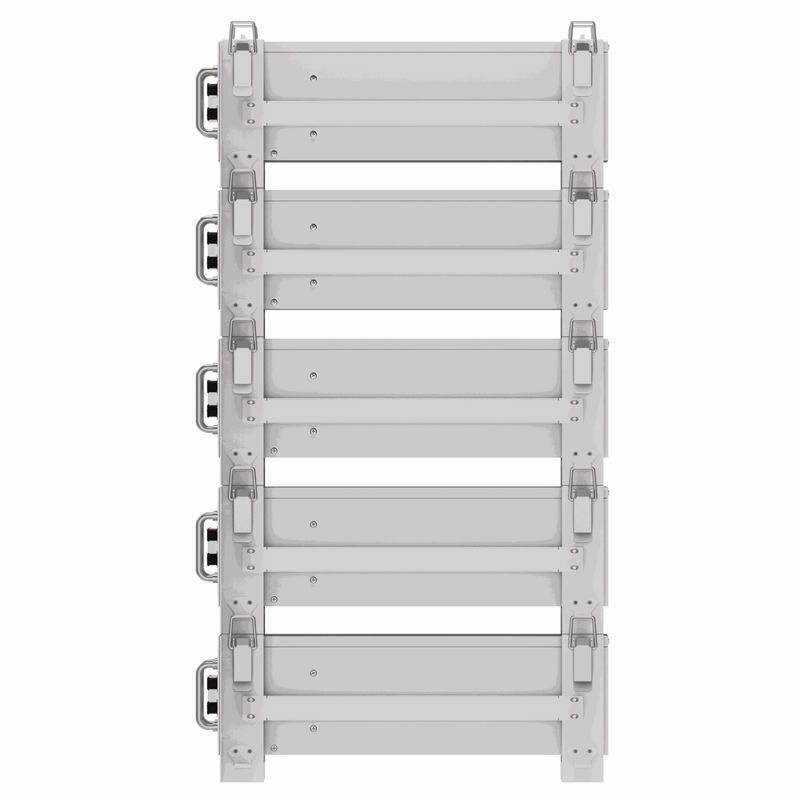

SR Bracket

• Assembles in minutes using minimal tools
• White, powder-coated finish
• Galvanized steel frame distributes weight along brackets and off of batteries.
• Four hinges per bracket securely attach brackets to each other.

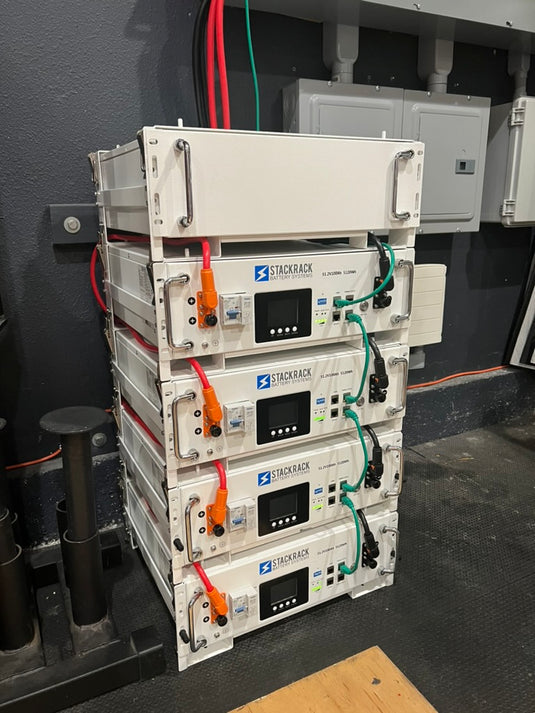

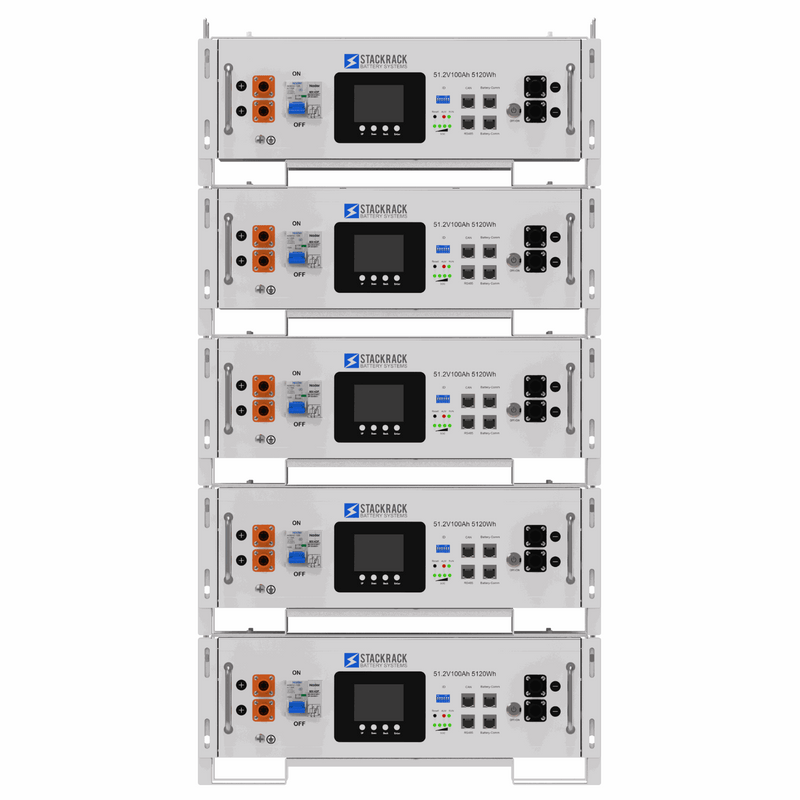

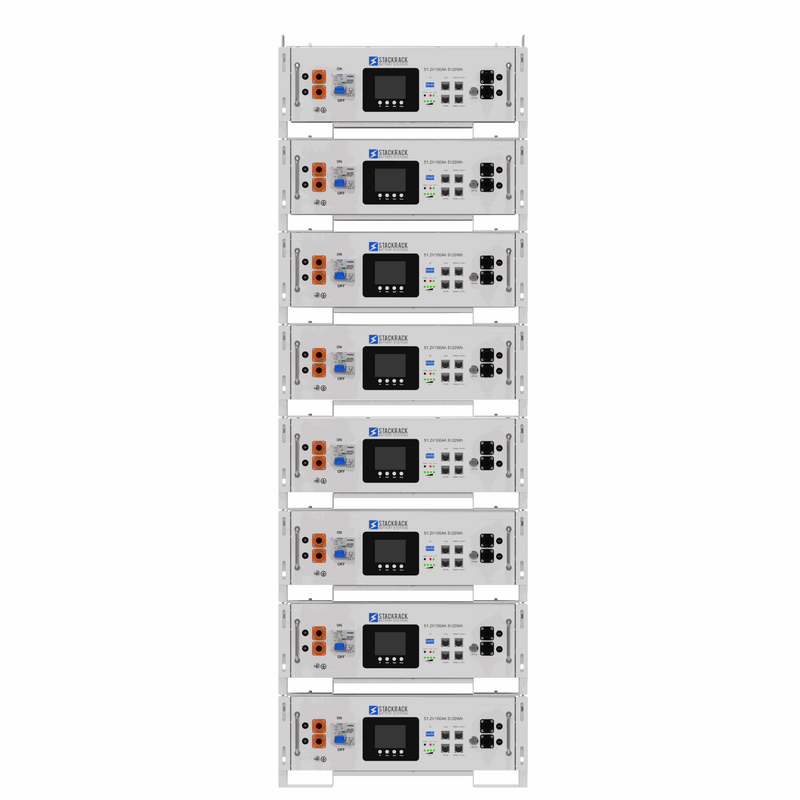

• Securely stack up to 8x SR5K-UL battery modules (40 kWh), along with a battery combiner box

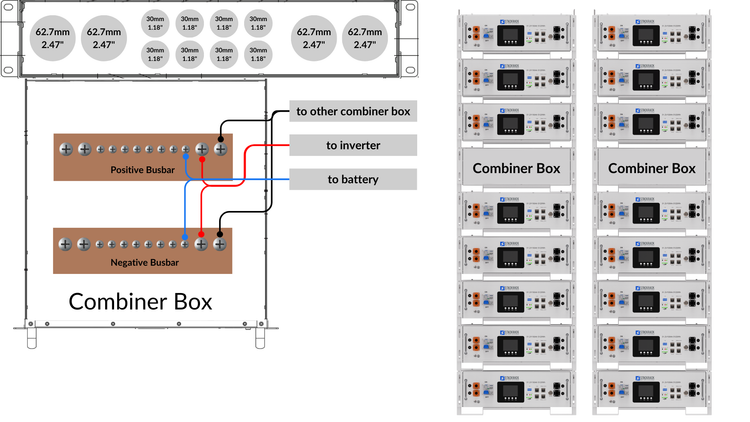

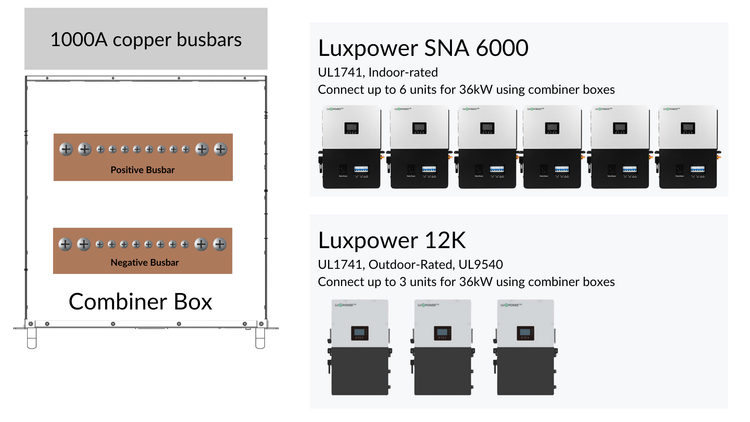

1000A Battery Combiner Box

SR5K-UL Data Sheet

SR5K-UL User Manual

SR5K-UL Warranty

SR5K-UL UL1973 Certification

SR5K-UL UL9540 Certification

SR5K-UL UL9540A Certificate

SR Brackets Data Sheet

The SR Brackets Cable Kit includes the following wires and cables for up to securely connect one SR5K-UL battery module.

Battery Terminal Cables

• (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Red), plug-in & 5/16" ring terminal
• (1x) 4 AWG UL10269 105°C 1000V 115A minimum ampacity, 5 ft, (Black), plug-in & 5/16" ring terminal

Ground Cables

• (1x) 8 AWG 12" UL1015, (green/yellow), M6 terminal endings

Communication Cables

• (1x) Cat6 Ethernet Cable, 12", non-shielded, no-crossover
